Key Features & Benefits

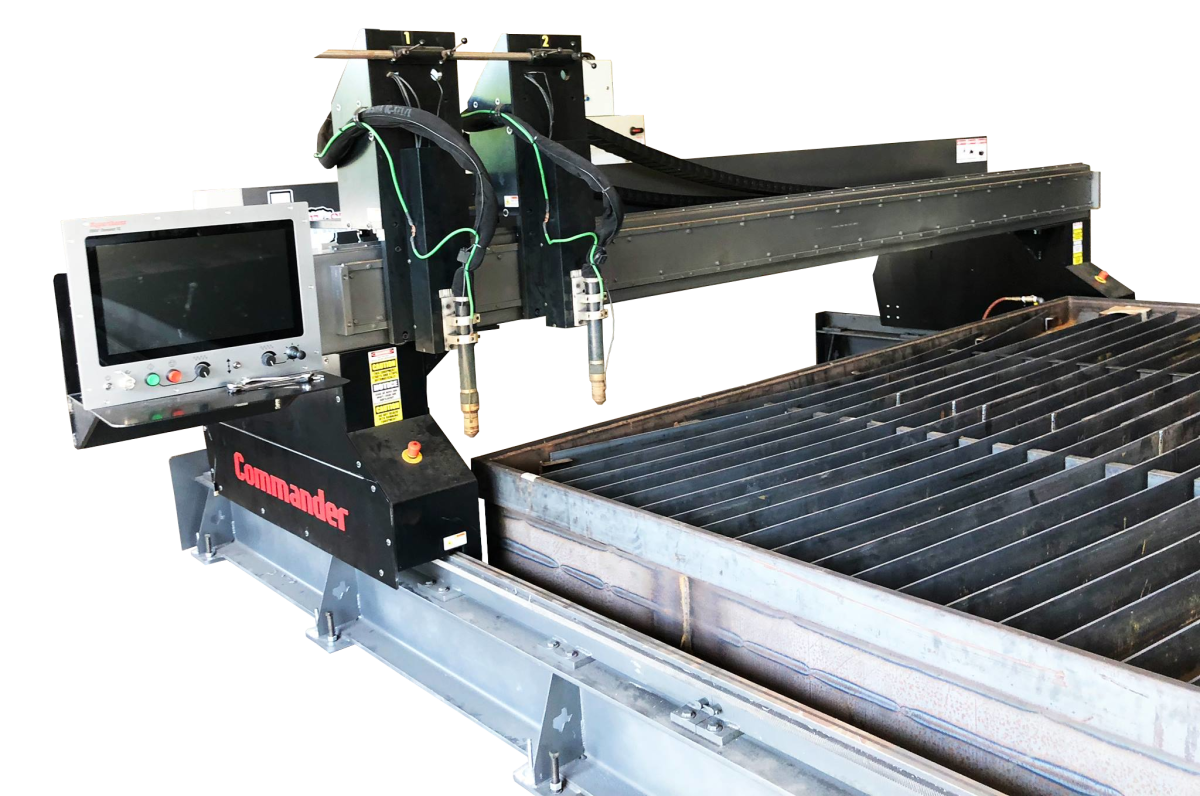

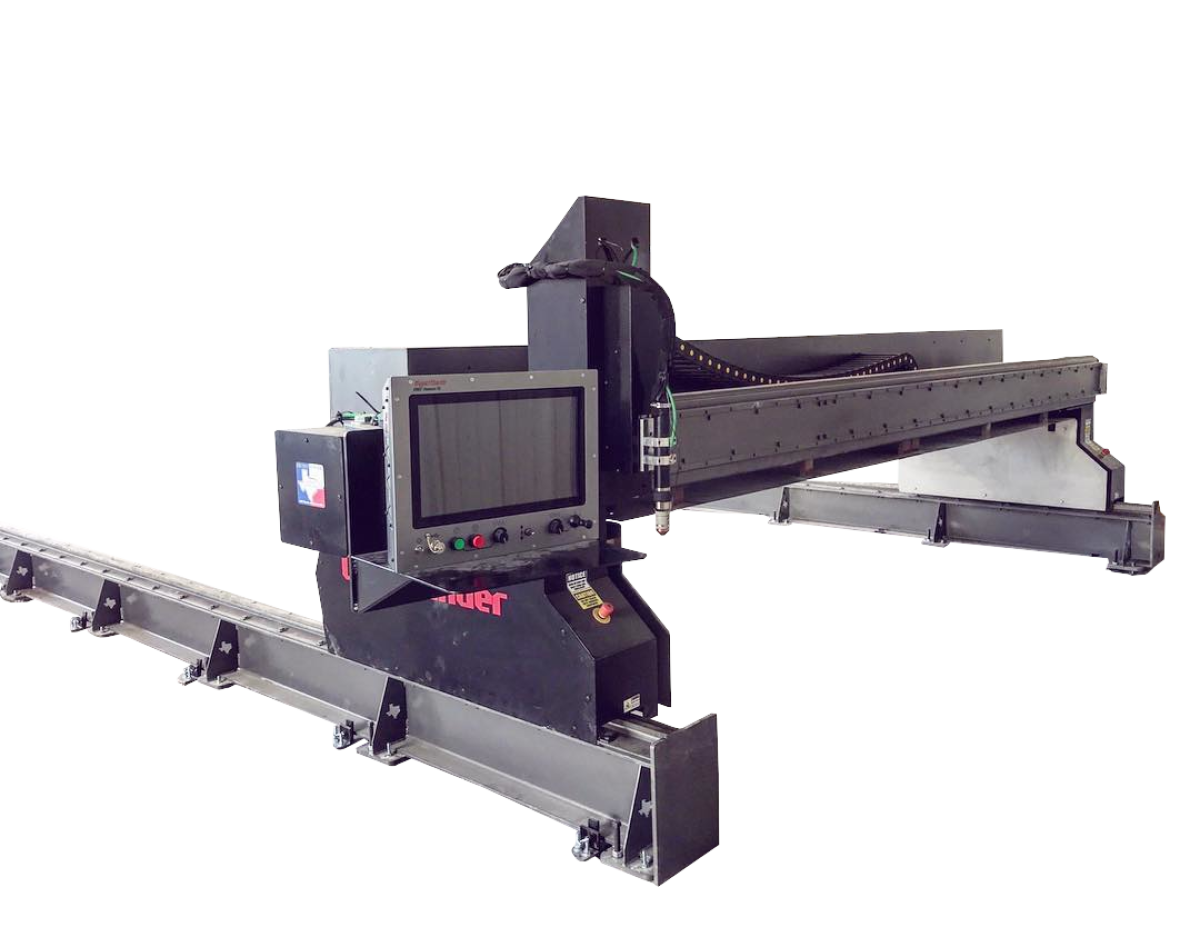

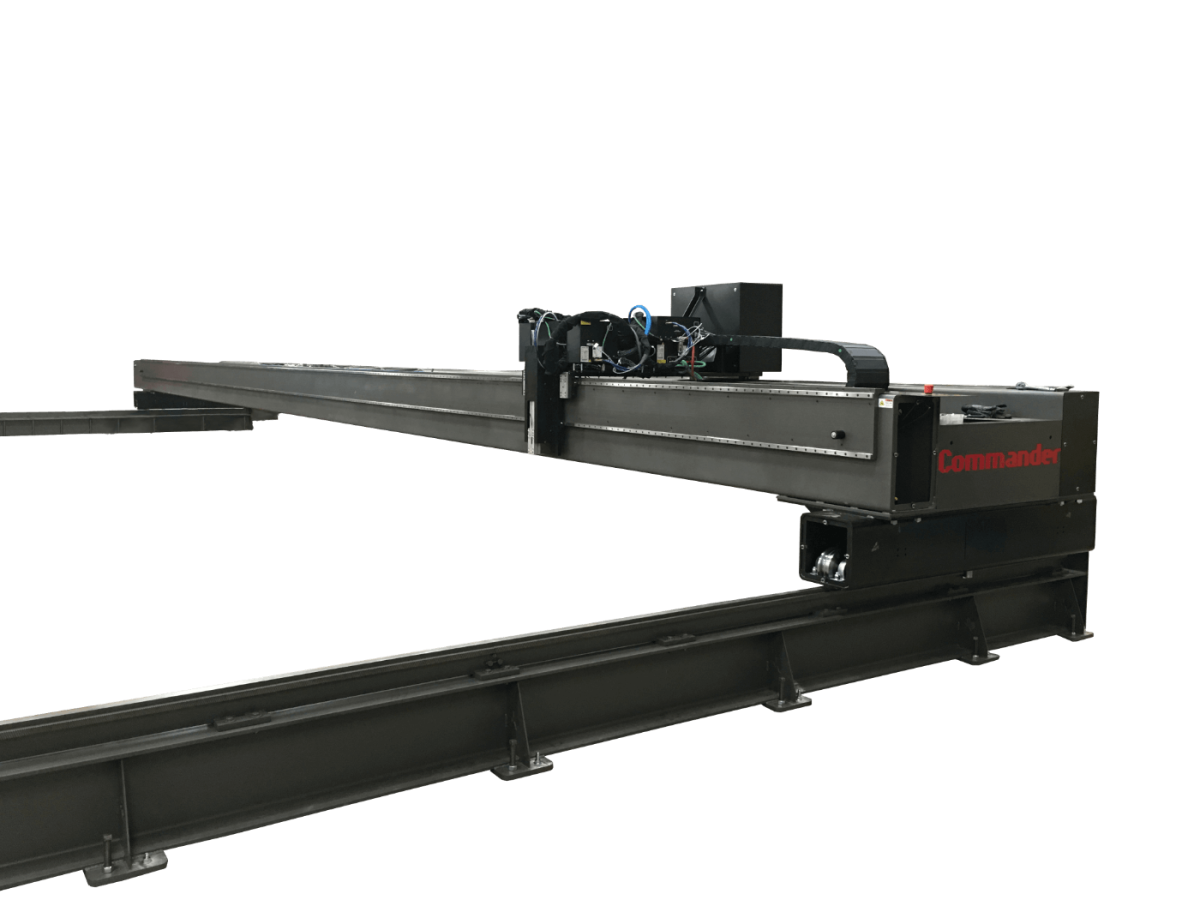

Heavy-Duty Floor-Mounted Design - Massive steel gantry construction with 12" × 12" heavy-wall tubing supports extreme loads and ensures structural integrity across long spans.
Precision Multi-Axis Motion - Helical rack-and-pinion drives paired with air-assisted anti-backlash transmissions and a dual Y-axis AC brushless servo system for ±0.007″ positioning and ±0.002″ repeatability.
Automated Torch Height Control - Integrated torch height controller with leadscrew Z-axis for accurate cut height control, even on warped or uneven materials.
Drilling & Milling Ready - Up to 22-position Cat 40/50 tool changer with full drilling/milling capabilities, including tapping, chamfering, and thread milling.
Enclosed Cable Management - Fully enclosed cable track protects wiring, hoses, and coolant lines from debris and wear.
Future-Ready Scalability - Can be configured to nearly any size and application, with options for rotary, bevel, multiple torches, and more.
Technical Specifications
Feature | Specification |
Table Sizes | Widths: 5-60’ Lengths: Custom |
Positioning Accuracy | ±0.007" |
Repeatability | ±0.002” |
Gantry Clearance | 8” |
Max Traverse Speed | Up to 1,000 IPM |
Available Cutting Systems | Powermax 45, 65, 85, 105, 125, Max Pro 200, XPR 170-460 - HPR800 |
Cutting Modes | Plasma, Oxy, Bevel, Rotary (round, square, rectangle, angle) |
Add-Ons & Custom Options
The Commander is fully modular and can be tailored to your application with a wide array of custom features and process tools:
- High-definition plasma and multiple oxy-fuel torches
- Rotary attachments (pipe, angle, square, rectangle)
- Drilling up to 2.5", tapping, chamfering, and hole interpolation
- Up to 22-position automatic tool changer (Cat 40/50)
- Multi-zone downdraft table or pneumatic waterbed (standard)
- Scribe tool, automated 5-axis bevel head
- Design integration with your current layout or bed system
Built for Your Process
Whether you're cutting, marking, drilling, or milling, the Commander adapts to your workflow. From structural steel fabricators to high-volume manufacturers, this machine is built to scale with your needs—now and into the future.
